XT60-M Cable Assemblies
Power Cable » DC

  • XT60 Male

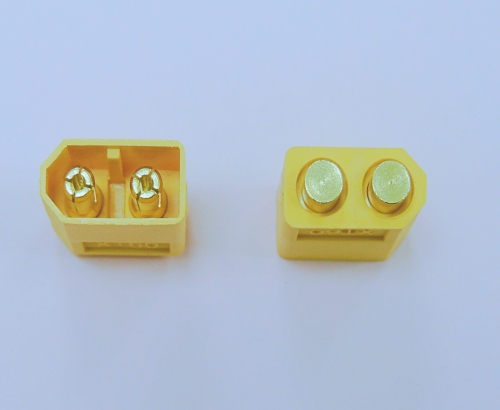

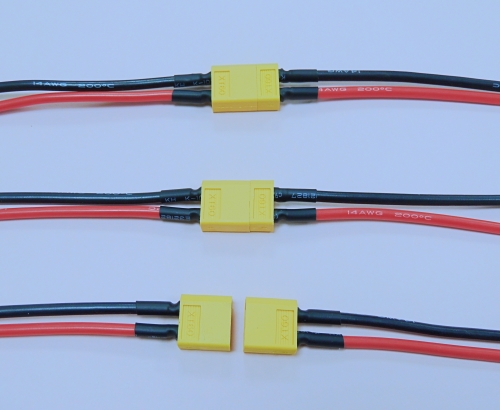

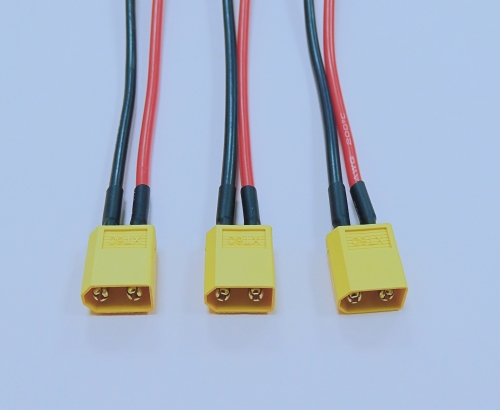

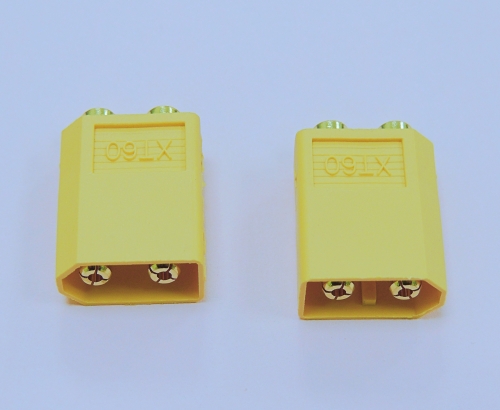

XT60-M Cable Assemblies
Model: XT60-M
Instantaneous current: 40A 16#.
Rated current: 20A 16#.
Contact resistance: 0.6mΩ.
DC withstand voltage: 500V.
Metal Treatment: Gold Plated.
Recommended wire: 12# 14# 16#.
Insulation material: PA66.
Operating temperature: -20℃ to 120℃.
Lifespan: 100 times.
Flame retardant grade: UL94-V0.
