Terminal block 5ESDVM-05P
Wire Harness » Wire to Board
NO : 5ESDVM-05P
  • Terminal block

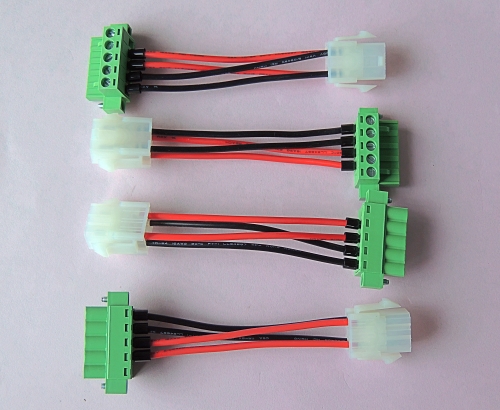

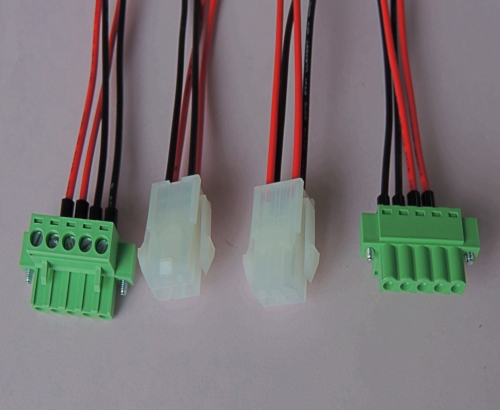

Terminal block PH5.O Plug TO MOX 4.2 Mini-Fit
Terminal block PH5.O Plug TO MOX 4.2 Mini-Fit
Cable UL1007 16AWG L=80mm

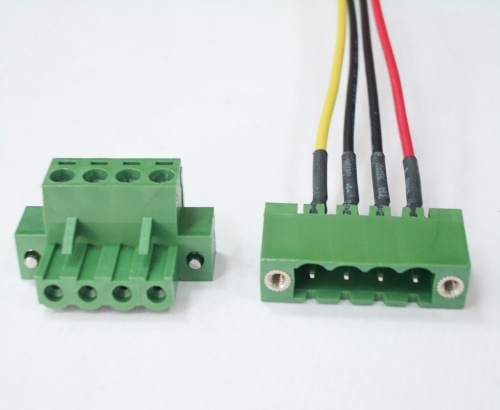

PCB Connector – Plug, Screw Connection, Pitch: 5.00mm, 300V, 15A
Type of locking With screw flange
Length (mm) 5.00*P+10.00
Width (mm) 18
Height (mm) 15
Number of positions 02P~24P
Level Single level
Insulation material PA
Insulation material group I
Flame retardant grade, in line with UL94 V0
Insulation resistance ≥500MΩ at DC 500V
Conductor material COPPER ALLOY
Conductor surface coating Tin PLATED
Components are UL listed
RoHS, REACH compliant cable design meets environmental standards
It is widely used in the internal connection wiring of home appliances, computers, consumer electronic devices, automotive equipment, machine equipment, and industrial instruments.
