RJ45 jack with Transformer
RJ45 TRANSFORMER » RJ45 TRANSFORMER
NO : 8-7-RJS1x11110G

  • RJ45 W/10G TRANSFORMER, W/LED, OFFSET

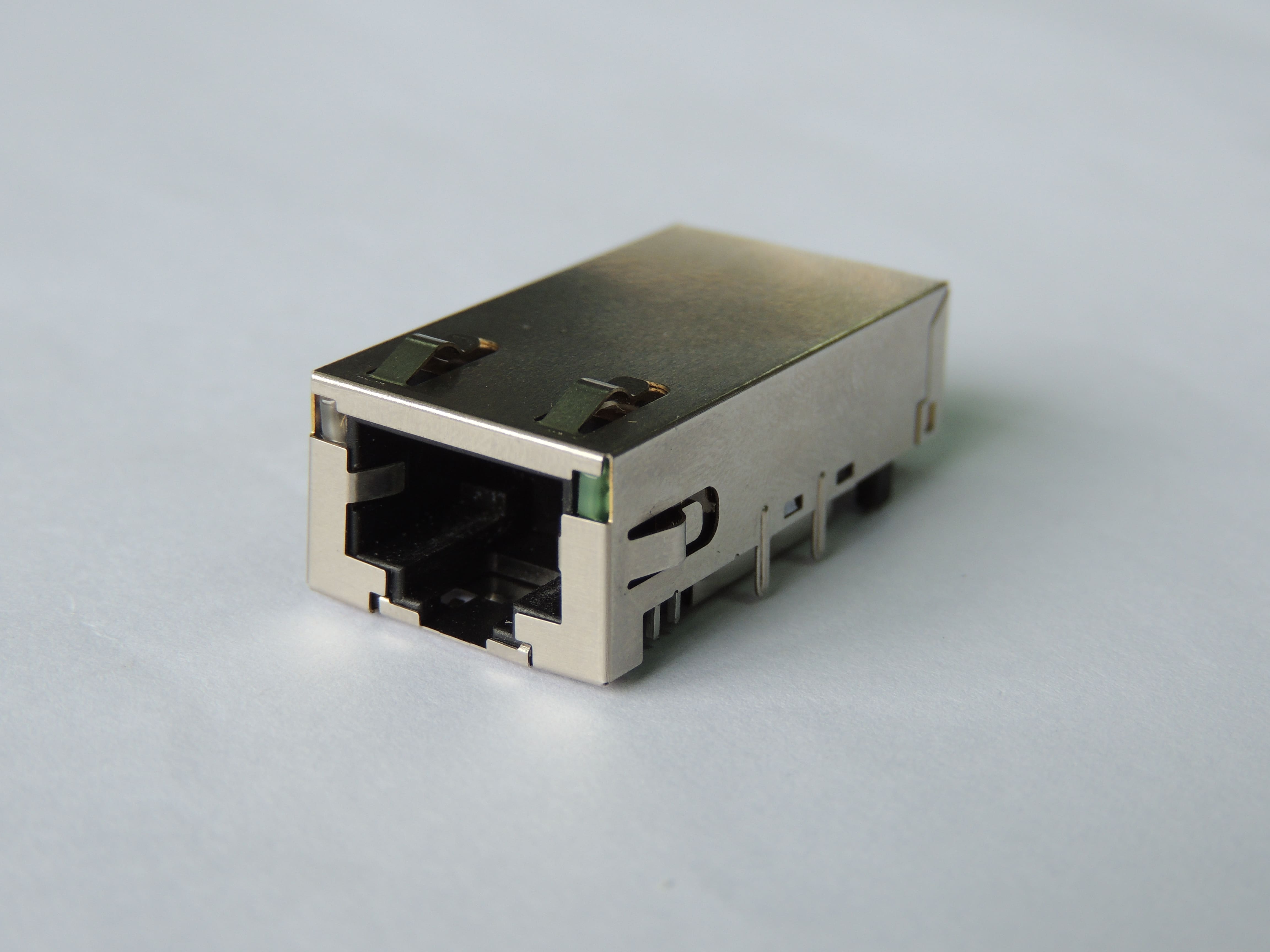

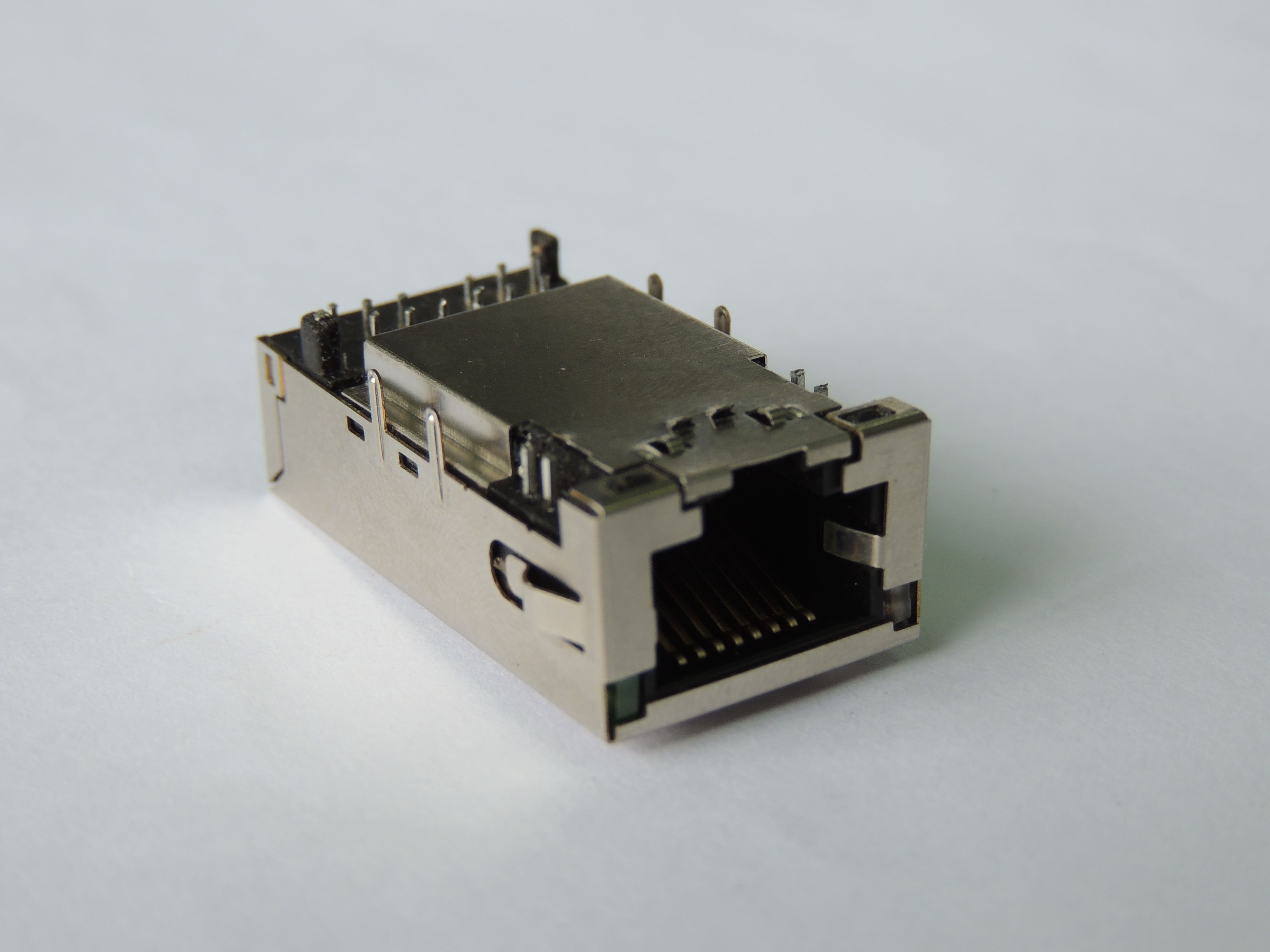

RJ45 8P12C, W/10G TRANSFORMER, W/LED, SHIELDED, OFFSET

DETAIL INFORMATION

1. MATERIAL:

HOUSING: NYLON, THERMOPLASTIC PLASTIC, UL94V-0,

CONTACTS: COPPER ALLOY, 30u" GOLD PLATING, TIN-COATED COPPER WIRE

SHIELD: COPPER ALLOY, PLATED NICKEL

2. NUMBER OF PORT: 1*1

3.SPEED: 10G

4. LED: YELLOW/ GREEN

5. OPERATING TEMPERATURE: -40°C~+85°C

6. INSERTION FORCE: 4 POUNDS MAX.

  EXTRACTION FORCE: 4 POUNDS MAX.

7. DURABILITY: 750 MATING CYCLED MIN.

8. CAVITY CONFORMS TO FCC RULES AND REGULATIONS PART 68,  SUBPART F..
