Home » Products » RJ45 TRANSFORMER » RJ45 TRANSFORMER » RJ45 1X4, W/1G TRANSFORMER AND 4PPoE, W/LED, SHIELDED
RJ45 TRANSFORMER » RJ45 TRANSFORMER

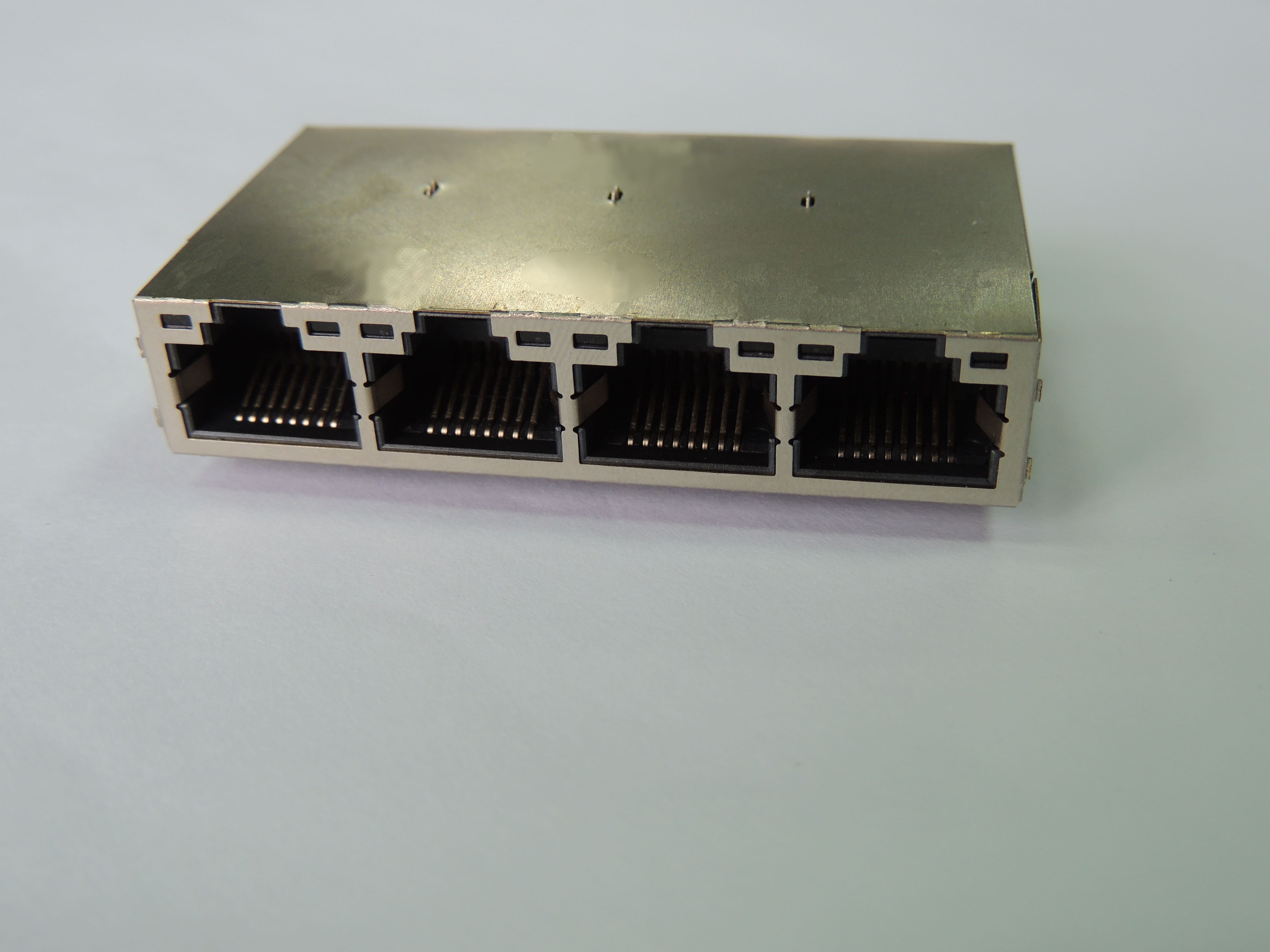

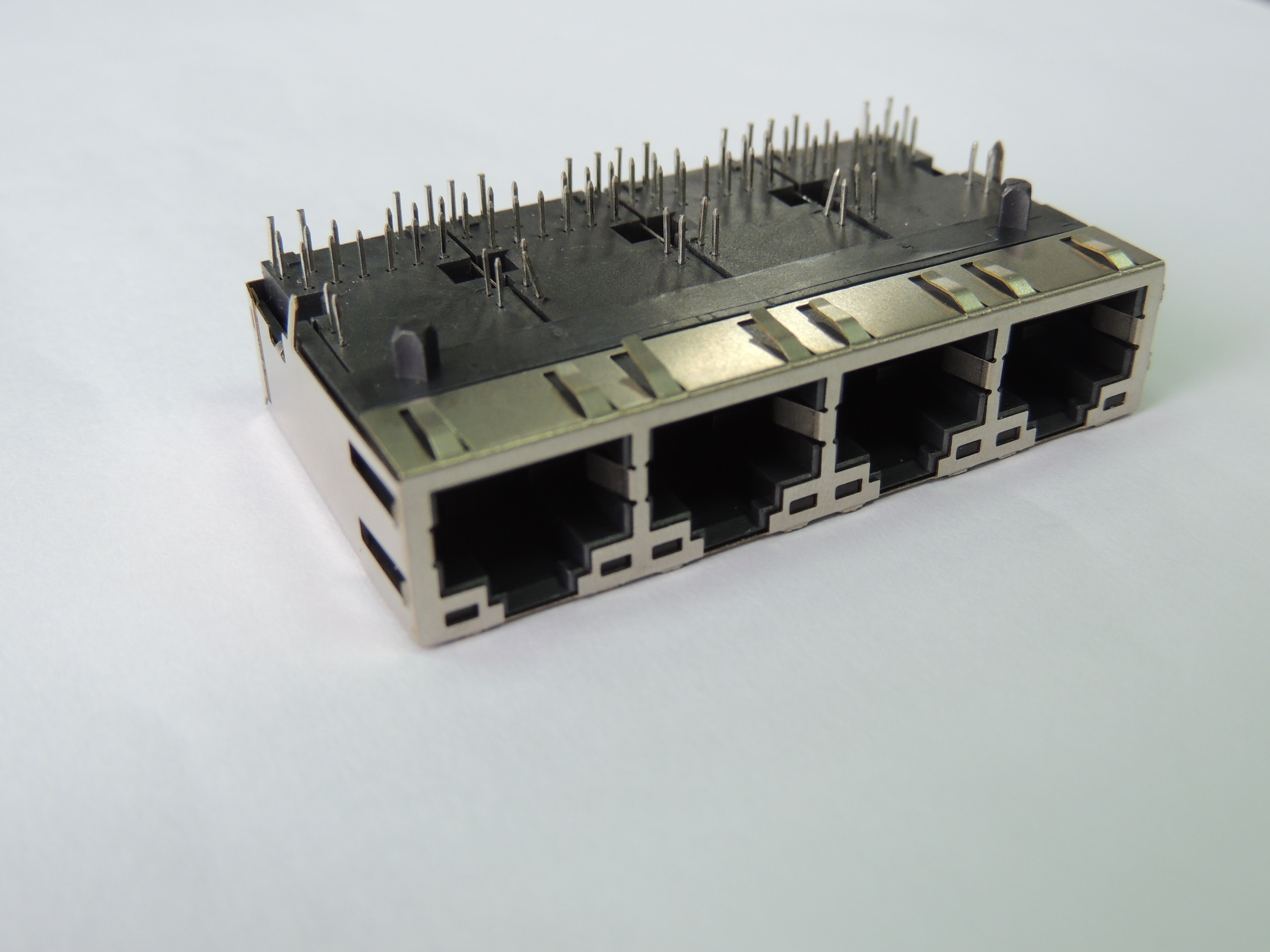

  • RJ45 1X4, W/1G TRANSFORMER AND 4PPoE, W/LED, SHIELDED

PART NO. 8-7-RJS1x3111G

DETAIL INFORMATION

1. MATERIAL:

HOUSING: HIGH THERMOPLASTIC, UL94V-0, COLOR-BLACK

CONTACTS: T=0.35mm PHOS-BRONZE, 6u" GOLD PLATING ON CONTACT AREA, NICKEL UNDERPLATING OVERALL

SHIELD: T=0.20mm COPPER ALLOY, NICKEL PLATING

2. LED: YELLOW/ GREEN

3. NUMBER OF PORT: 1*4

4.SPEED: 1G

5. OPERATING TEMPERATURE: 0°C~+70°C

6. MATING FORCE: 4 POUNDS MAX.

  UNMATING FORCE: 4 POUNDS MAX.

7. DURABILITY: 750 MATING CYCLED MIN.

8. CAVITY CONFORMS TO FCC RULES AND REGULATIONS PART 68,

   SUBPART F.
