.jpg "JAE 1.0 FI-X30HL")
.jpg "JAE 1.0 FI-X30HL")

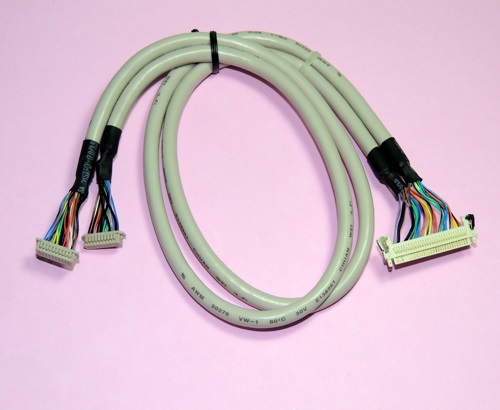

Suitable for LVDS Signal Panel

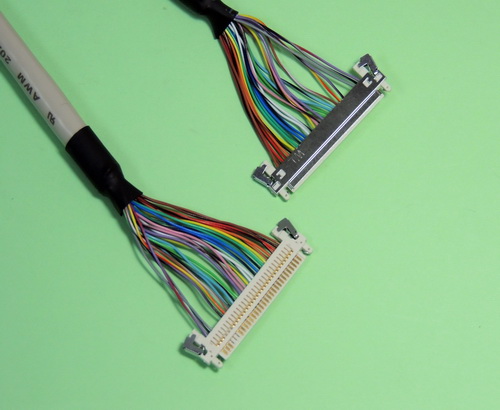

JAE FI-X30HL 1.0mm
Housing: Nylon 66. UL94V-0
Shell: Copper alloy / Nickel plated
Lock spring: Stainless steel
Pitch: 1.0mm
Poles: 30Pin
Terminal: Phos. bronze
Plating: Gold plated

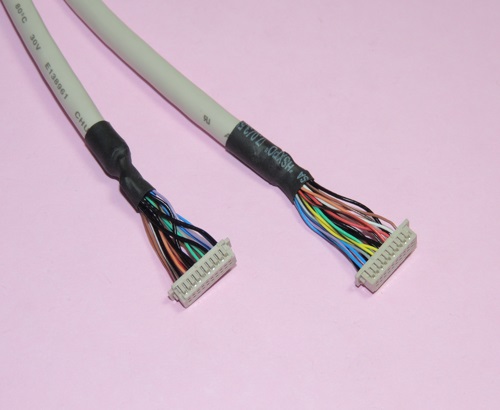

HRS 1.25mm DF13
Pitch: 1.25mm
Poles: 2-15pin, 2x5Pin, 2x10Pin, 2x15Pin, 2x20Pin
Wire Range: Suitable for AWG 28-32

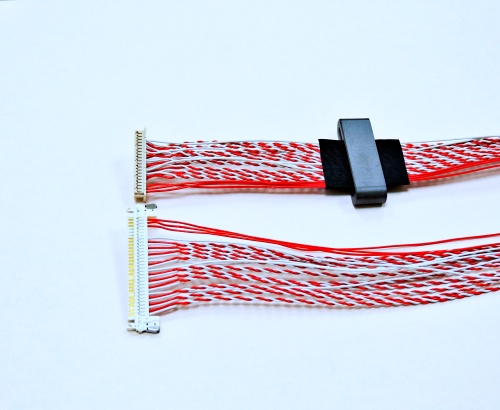

EDI LVDS CABLE wire is used in LCD liquid crystal display, including computer equipment, display panel, communication equipment and so on. LVDS is a technology for high-efficiency signal transmission applications. At the same time, the demand voltage of the product is low, and the stable transmission effect of images and signals can be achieved. The characteristics of LVDS wire are that its wire is small, does not occupy the volume in the device, and the pitch pitch is small, and the transmission efficiency through twisted (Twisted) is higher and stable.
|
