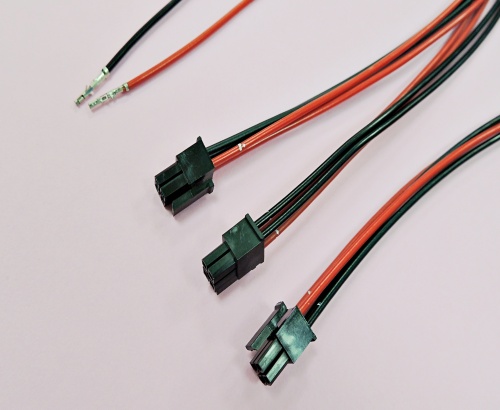

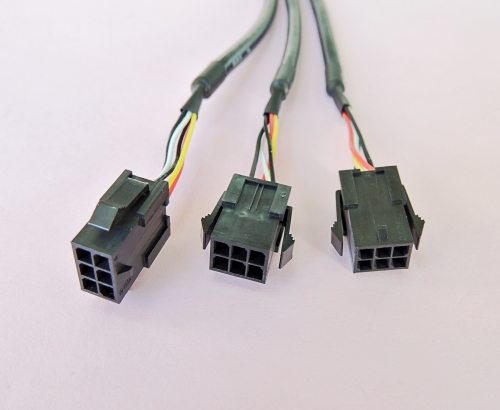

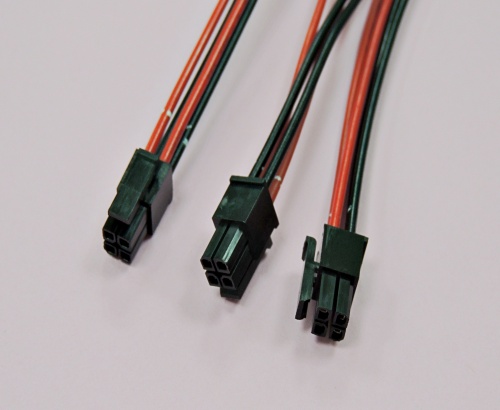

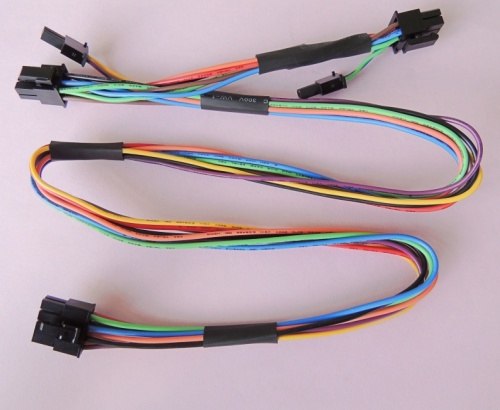

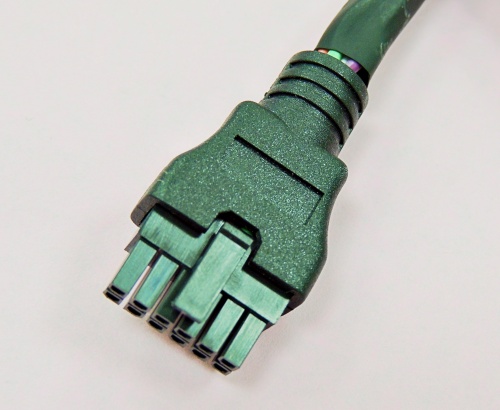

Wire to Wire Cable Assembly
Connector: Molex 43025 Micro Fit Male

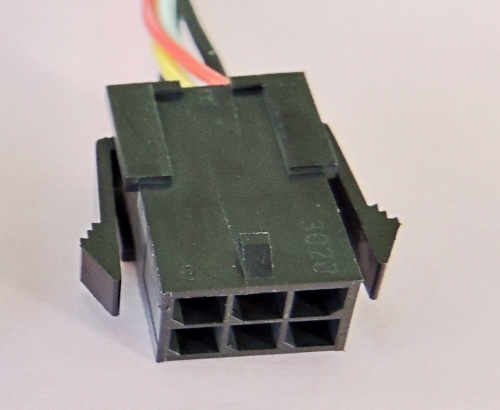

Connector: Molex 43020 Micro Fit Female
Housing: Nylon 66 , UL94V-2
Pitch: 3.0mm
Poles: 2-24pin

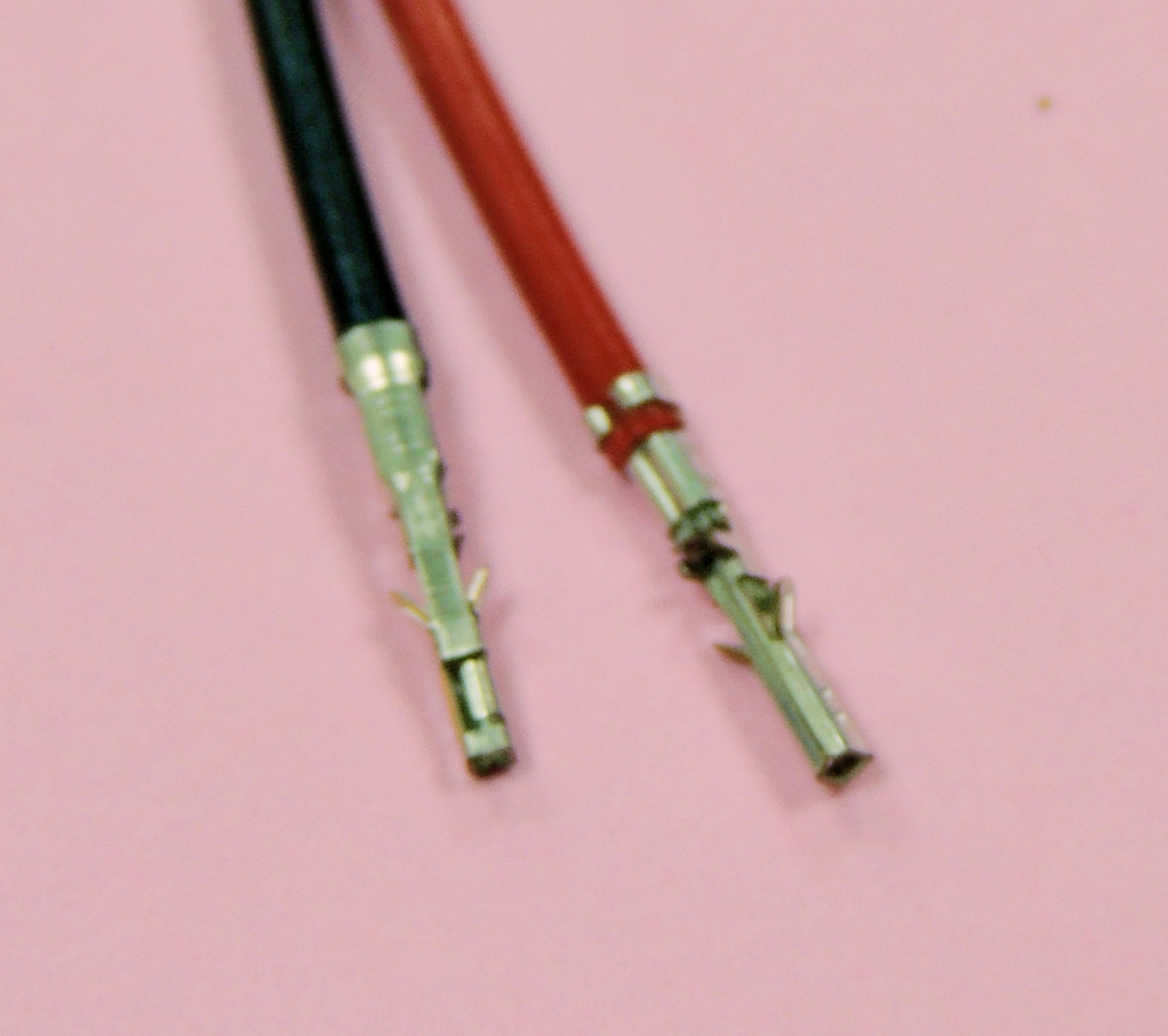

Terminal: Brass
Plating: Tin plated
Wire Range: Suitable for AWG 20-24
Various lengths available
ATX motherboard internal power transmission dedicated wiring
Application: assembly for internal power supply of computer or machine equipment.
RoHS, REACH compliant cable design meets environmental standards
Micro-Fit 3.0 Connector System is designed to meet the needs for high contact density signal or power connectors.
Micro-Fit 3.0 connectors feature a miniature 3mm (0.118") pitch, yet retain many of the features found on larger power connectors and can carry up to 5A of current.
Micro-Fit products are available in circuit sizes 2 to 24 for single- and dual-row, wire-to-board, and wire-to-wire applications such as computers, work stations, satellites, cellular phones, and a host of consumer products.
|
